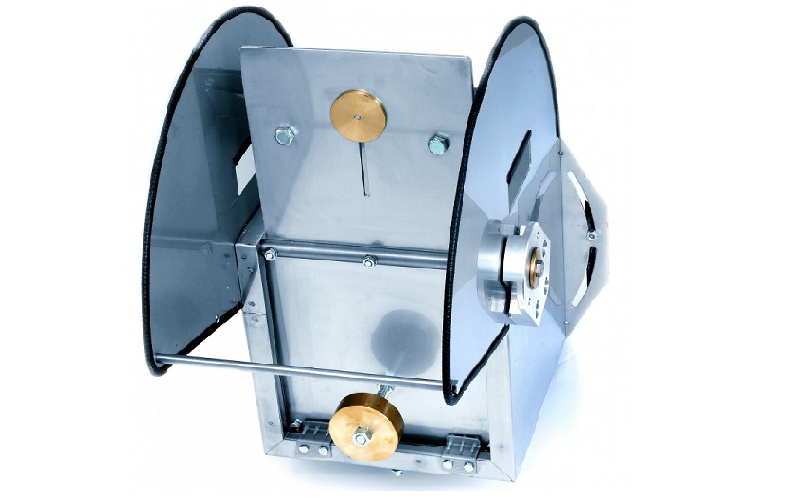

ZUK 250





Secondary-air appliance according to DIN 4795 for reducing excessive negative pressure in the chimney that is caused by the use of standard cross-sections and the weather despite correct design.

CE label according to EC guideline 2006/42/EC.

 Control wheel and casing made of aluminized steel
• Setting weight made of brass
• Damping stop for control wheel
• Can be locked in closed position
• Included adjustable pressure damper
• With connection flange for installation on pipe bushin F 250 or connection piece A 250/...
• With motor control M 250 as combined secondary-air appliance
• Self-cleaning brass bearing
• Weight: 13 kg

Safety note:
For systems with more than 300 kW output and/or an effective chimney height of more than 20 m the, impact-sound silenced secondary-air appliance ZUK 250 SG(-E) is necessary for functional and mechanical reasons.
